iii.FILOseal

FILOseal+HD

For over 60 years, we have developed expertise in manufacturing and supplying quality products and solutions to connect, seal and protect the underground cable networks of our international and domestic customers. Filoform supplies a comprehensive range of quality solutions, applications and products to meet the general, specialist and bespoke requirements of cable, fibre optic and utility networks. Our sealing solutions are characterized by their simplicity, universal application and reliability.

Re-enterable DuctSeals

Filoform supplies a comprehensive range of quality solutions, applications and products to meet the general, specialist and bespoke requirements of cable, fibre optic and utility networks. Our sealing solutions are characterized by their simplicity, universal application and reliability.

Filoform FiloSeal+HD duct sealing system

Filoseal+

FILOseal+HD

FILOseal+HD/ FIRE

iii.FILOseal

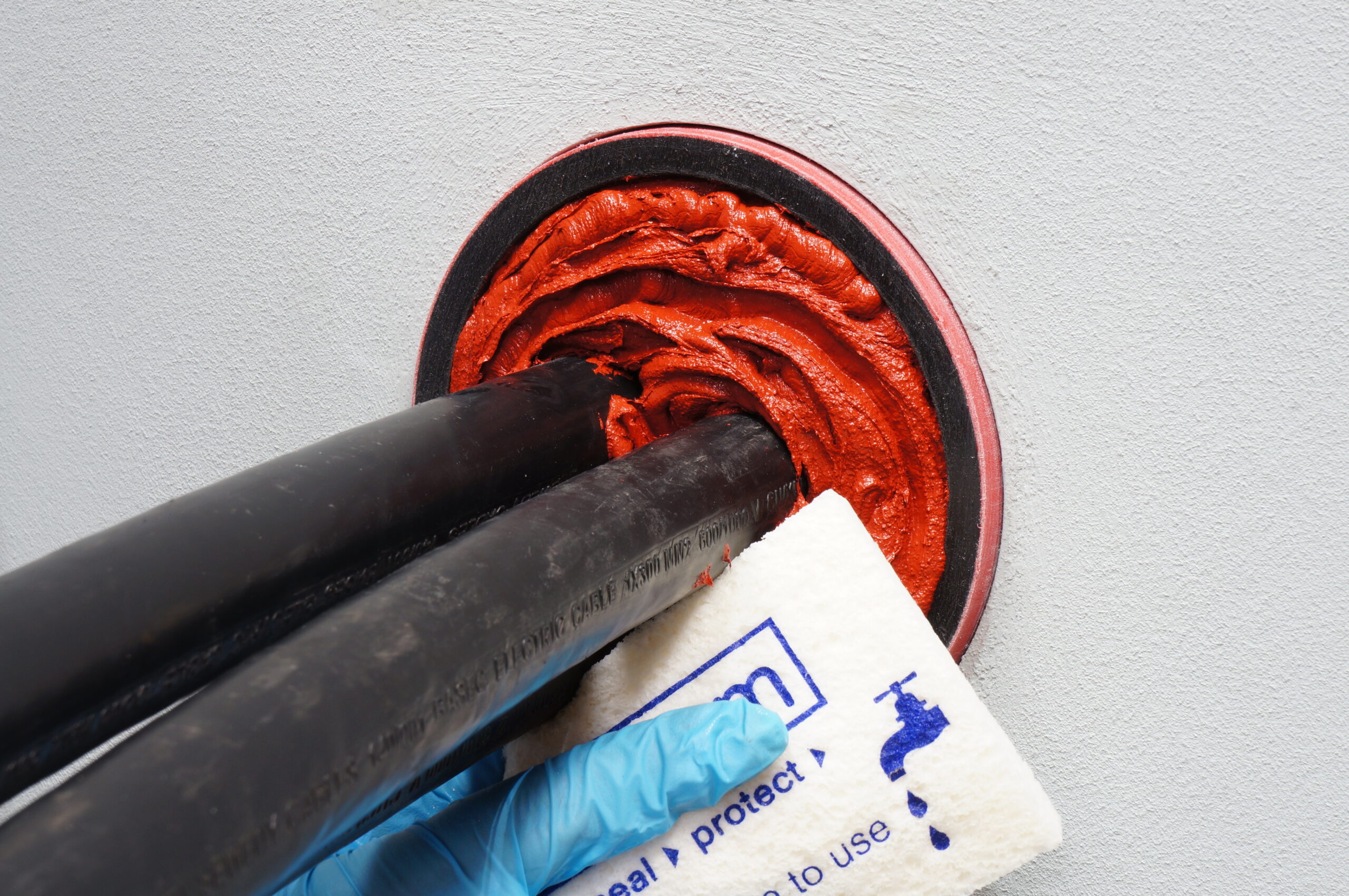

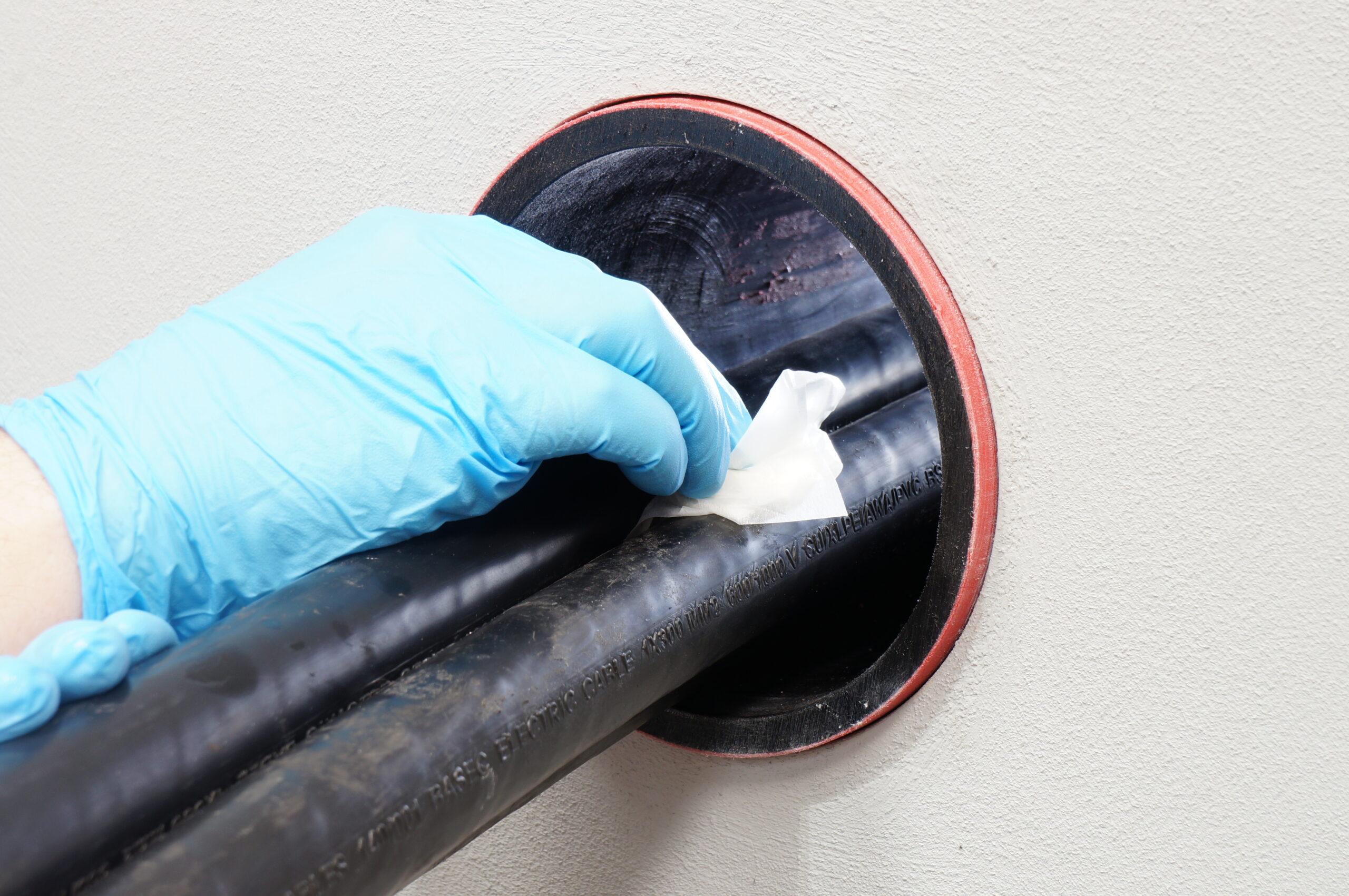

Duct sealing system FiloSeal+ is a universal solution for sealing cables and pipes in ducts, drilled holes or transit frames. Using our MD+ sealant that cures with air

iii.FILOseal

FiloSeal+HD is suitable for sealing any cable configuration or pipes contained in one duct and also allows easy re-entry of the seal.

iii.FILOseal

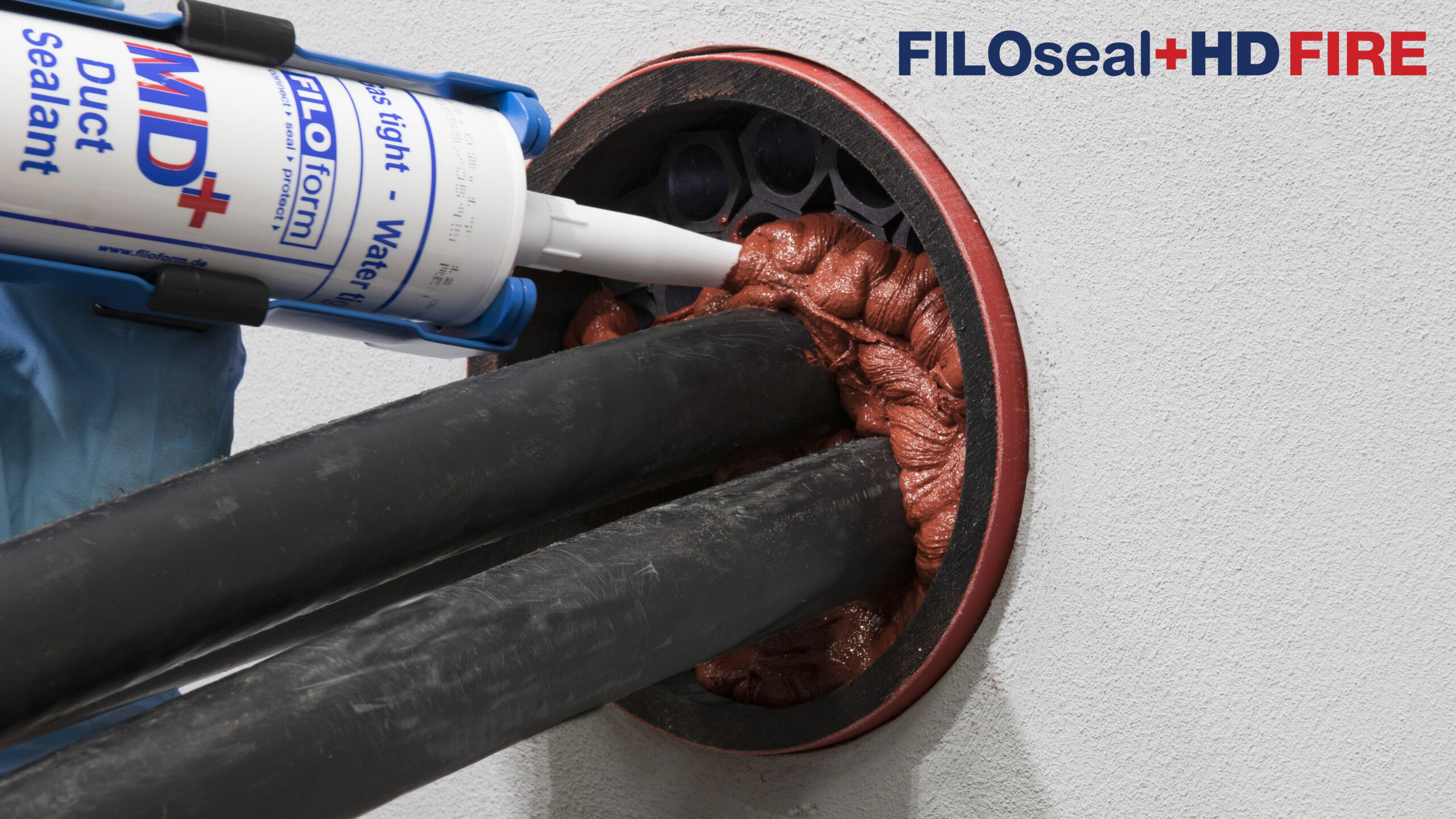

FiloSeal+HD FIRE provides a strong support system using our specially formulated material called Formite which builds up like a honeycomb structure.

iii.FILOseal

Features

Flexible, one component, adhesive and sealing compound in a cartridge (310ml)
• High levels of Gas and Water tightness
• Excellent adhesion
• Resistant against Water, Alkaline, Chemical agents
• Resistant to Hydrocarbons
Suitable for sealing underground cable ducts set out within the APEA ‘Blue Book’
• Resistant to Hydrogen Sulphide/Methane and many other Gases (NedLab)
• Resistant to rats
• Resistant to termites (Mastotermes Darwiniensis) Northern Australian termites
• Non corrosive
Solvent free
• Shock absorbing
• Non toxic, neutral and almost odourless
• Complies with ATEX regulations
WIMES Compliant, 3.02(April2013) Section 6.4.3.2-d.
• Suitable for any shaped duct/ borehole/ opening
Seals all known materials, PVC & PE sheathed cables, PILC, (HD) PE pipes
• Suitable for renovations, can be installed retrospectively
• Up to 1 bar pressure resistance

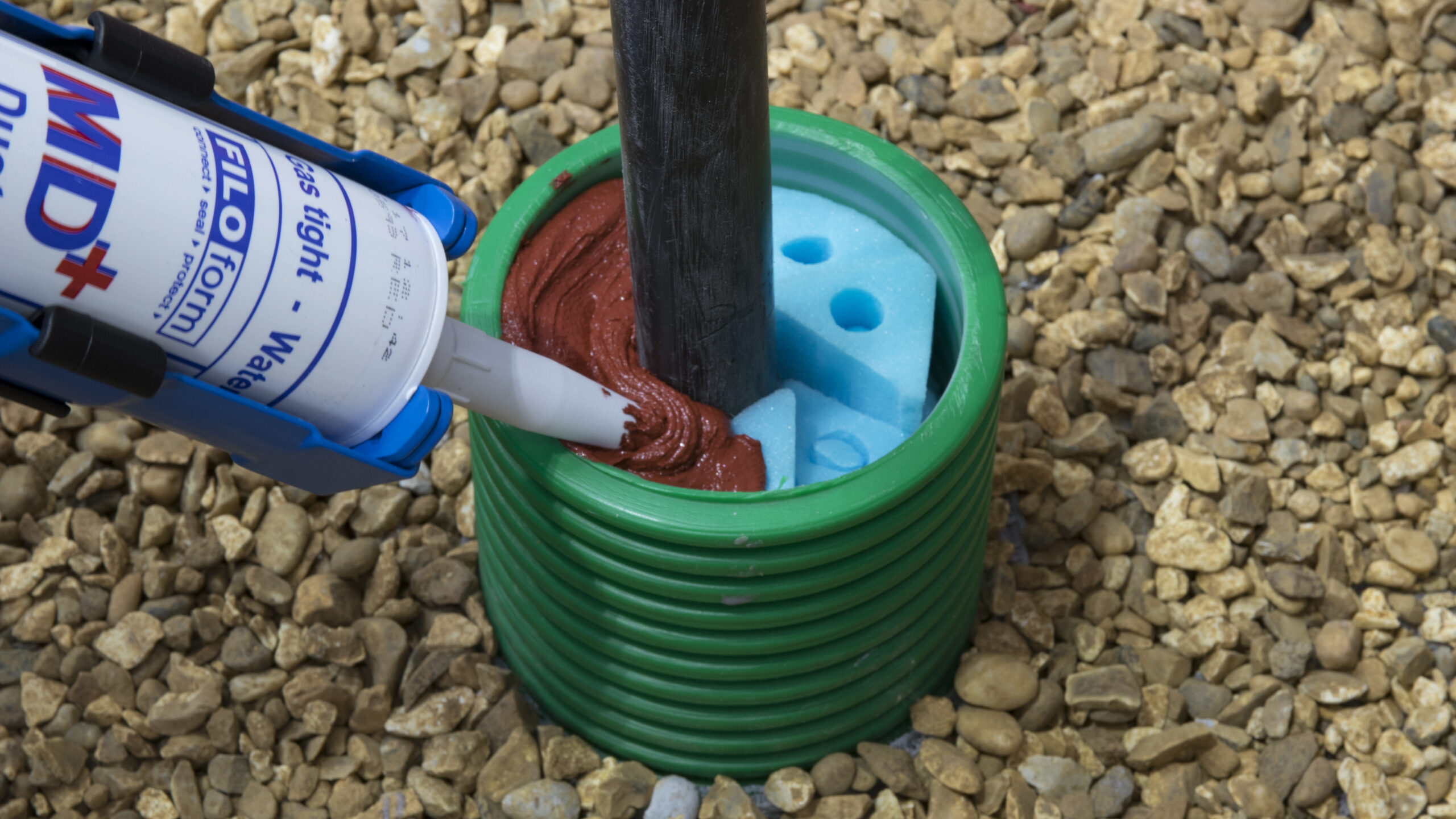

Quick & easy to install, especially in vertical ducts
Non Hazardous
• Over 25 years of operational experience

Product Range

FiloSeal+125 mm
Duct diameter min.-max. (mm): Ø 125 max.
Maximum cable diameter in the duct (mm): Ø 95 max.


FiloSeal+ 200 mm
Duct diameter min.-max. (mm): Ø 200 max.
Maximum cable diameter in the duct (mm): Ø 160 max.

Standards & Tests

Complies with ATEX regulations


WIMES Compliant, 3.02(April2013) Section 6.4.3.2-d.

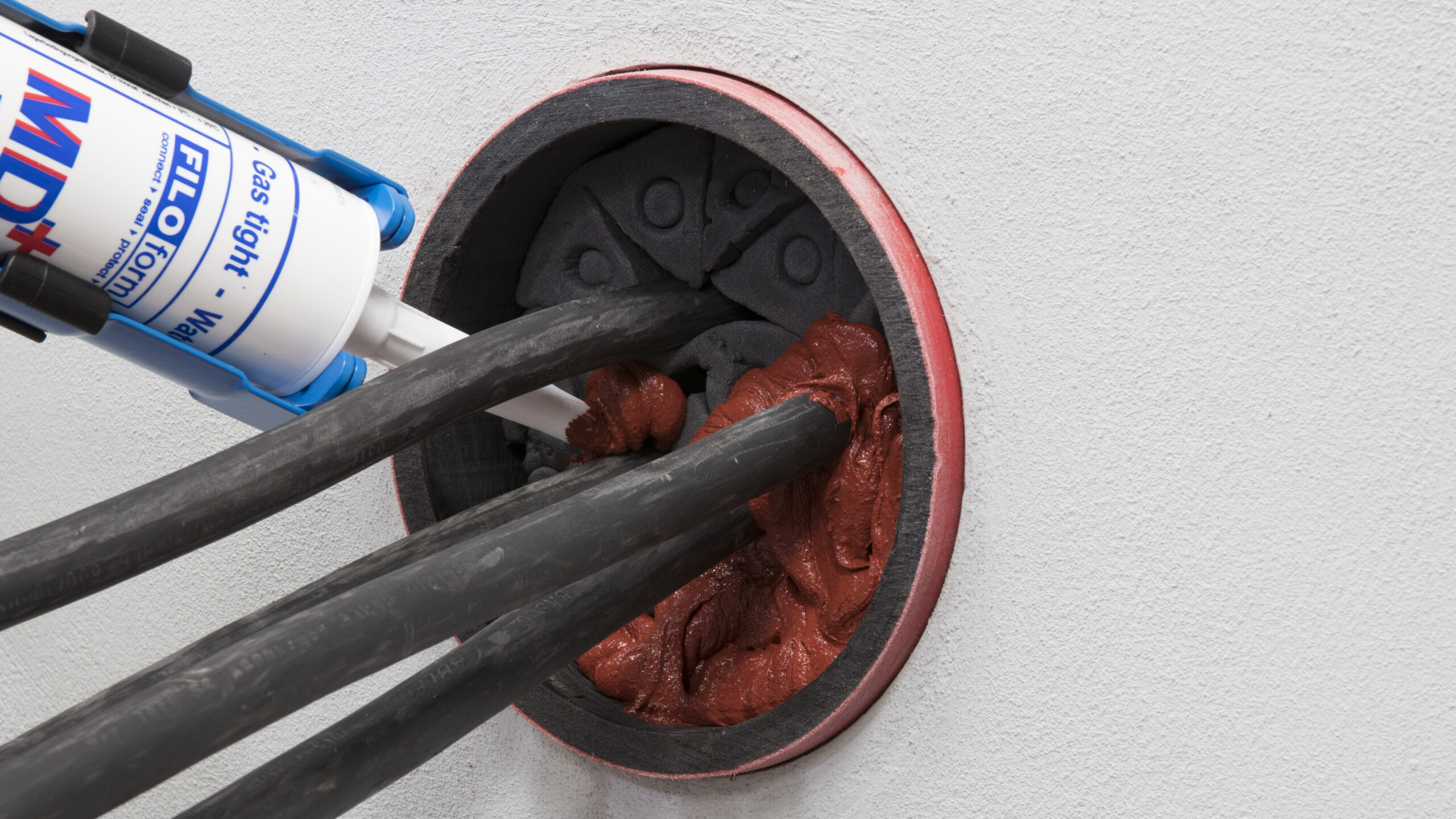

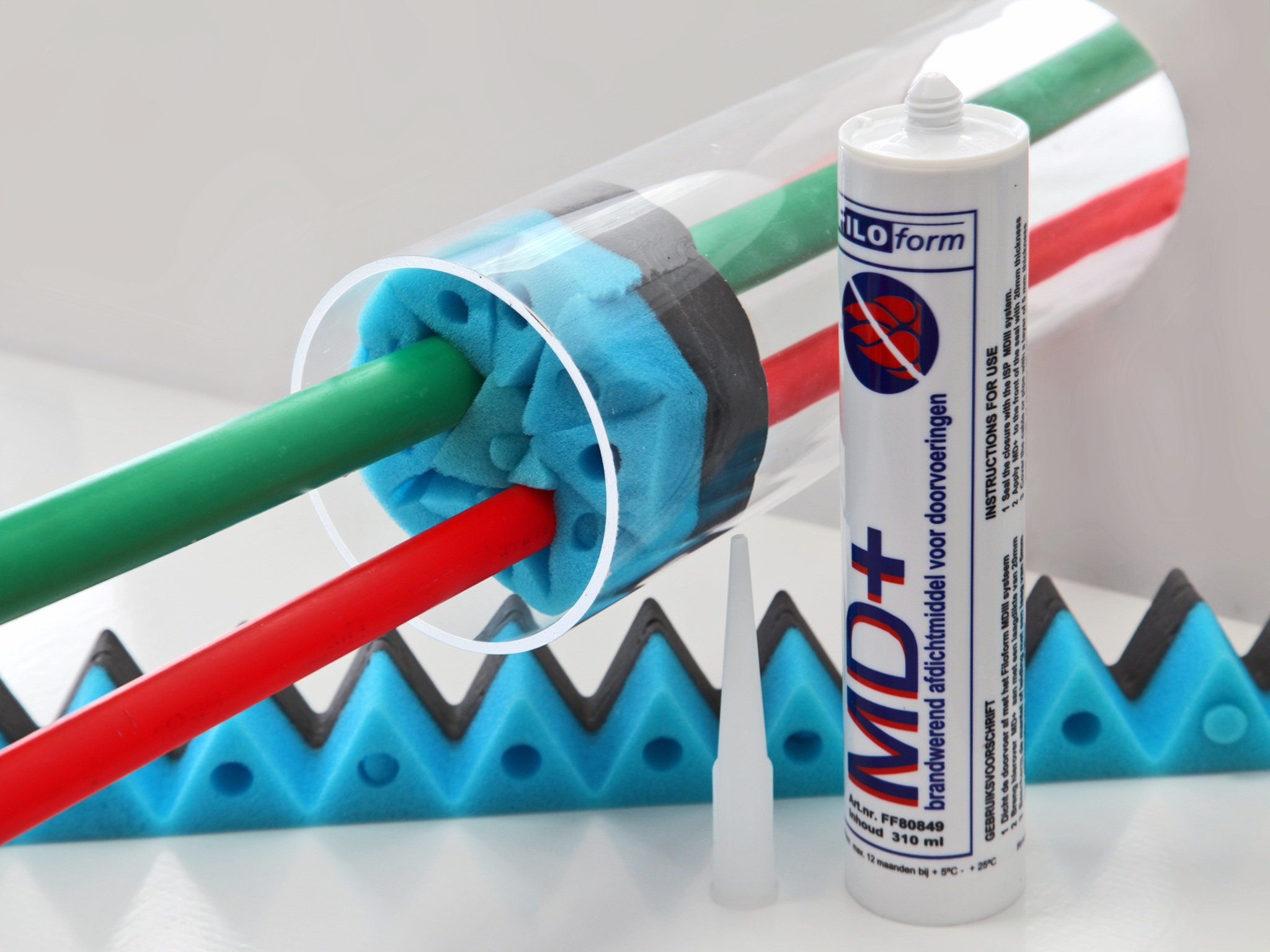

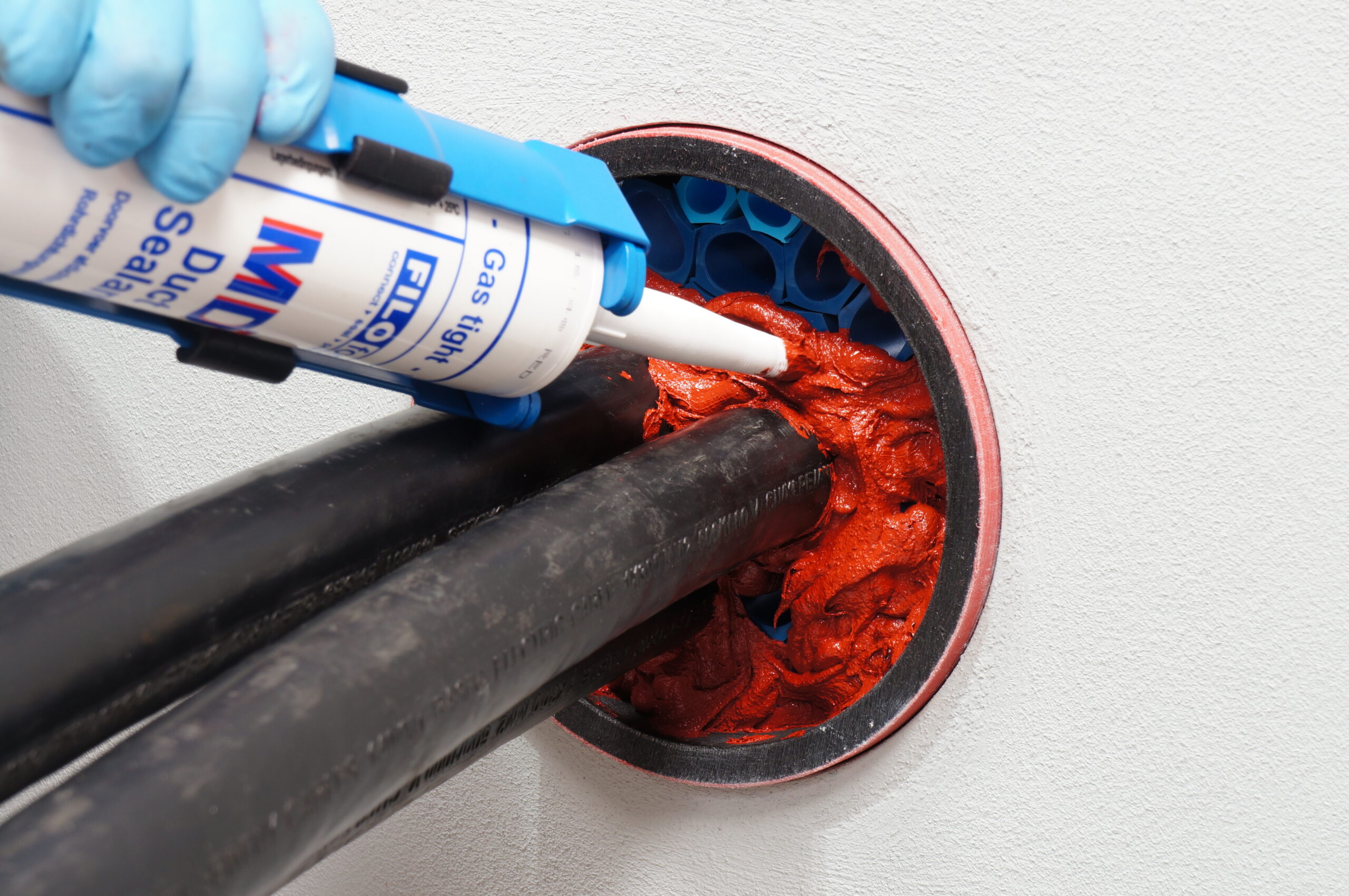

The high quality, one component, flexible sealant “MD+” is based on a silicone compound that cures with air (Humidity).

iii.FILOseal

Features

High levels of Gas and Water tightness
• Excellent adhesion, applicable to all common building materials
• Shows Fire resistance properties
• Resistant against Water, Alkaline, Chemical agents
• Resistant to Hydrogen Sulphide/ Methane and many other Gases (NedLab)
• Non corrosive
Solvent free
Shock absorbing
Nontoxic, neutral and almost odourless
• Complies with ATEX regulations
• Suitable for any shaped duct/ borehole/ opening
Quick and easy installation
• Seals all known materials, PVC & PE sheathed cables, PILC, (HD) PE pipes
• Suitable for renovations, can be installed retrospectively
• Resistant to Rats
• Resistant to termites (Mastotermes Darwiniensis) Northern Australian termites
• Resistant to hydrocarbons

Product Range

FiloSeal+HD – 75 mm > 110 mm
Duct diameter min.-max. (mm): Ø 110 max.


FiloSeal+HD – 125 mm > 160 mm
Duct diameter min.-max. (mm): Ø 160 max.


FiloSeal+HD – 180 mm
Duct diameter min.-max. (mm): Ø 180 max.


FiloSeal+HD – 200 mm
Duct diameter min.-max. (mm): Ø 200 max.


FiloSeal+HD – 225 mm
Duct diameter min.-max. (mm): Ø 225 max.


FiloSeal+HD – 250 mm
Duct diameter min.-max. (mm): Ø 225 max.

Standards & Tests

Up to 2 bar Pressure Resistance


100Kg pulling Force on the cables when sealed


10xd at 45o, with 1 bar pressure bending test

All the benefits of the FILOseal+ with the addition of the following features:

Gas & Water Tight – Up to 2 Bar


Seals Large LV, MV, & HV cables


100kg Pulling force on the cables


10xd at 45°, with 1 bar pressure





iii.FILOseal

Features

• Gas & Water tight up to 2bar
• Excellent adhesion, applicable to all common building materials
Fire resistant to BS EN1366-3:2009 & AS1530.4-2014
• High Oxygen index
• Resistant against Water, Alkaline, Chemical agents
• Resistant to Hydrogen Sulphide / Methane and many other Gases (NedLab)
• Non corrosive
Solvent free
Shock absorbing
• Non toxic, neutral and almost odourless
• Complies with ATEX regulations
• Suitable for any shaped duct / bore hole / opening
Quick and easy installation
• A complete kit
• Seals all known materials, PVC & PE sheathed cables, PILC, (HD) PE pipes
• Suitable for renovations, can be installed retrospectively
• Resistant to Rats
• Resistant to termites (Mastotermes Darwiniensis) Northern Australian termites
WIMES Compliant, 3.02(April2013) Section 6.4.3.2-b

Product Range

Filoseal+HD FIRE –
75>110mm Duct Sealing System

2 bar, water, gas & rodent proof plus BS EN1366-3:2009 Fire certified – up to 110mm


Filoseal+HD FIRE –
125>160mm Duct Sealing System

2 bar, water, gas & rodent proof plus BS EN1366-3:2009 Fire certified – up to 160mm


Filoseal+HD FIRE –
180mm Duct Sealing System

2 bar, water, gas & rodent proof plus BS EN1366-3:2009 Fire certified – up to 180mm


Filoseal+HD FIRE –
200mm Duct Sealing System

2 bar, water, gas & rodent proof plus BS EN1366-3:2009 Fire certified – up to 200mm


Filoseal+HD FIRE –
225mm Duct Sealing System

2 bar, water, gas & rodent proof plus BS EN1366-3:2009 Fire certified – up to 225mm


Filoseal+HD FIRE –
250mm Duct Sealing System

2 bar, water, gas & rodent proof plus BS EN1366-3:2009 Fire certified – up to 250mm


Standards & Tests

Up to 4 hours fire resistance in ducts


Tested to BS EN1366-3 2009 & AS1530.4-2014


Tested to London UndergroundLUL S1085


Tested to European rail – BS EN 45545-2:2013


Tested to French rail standard CIt NF F16-101


Tested to Smoke index – ISO 5659-2:2012


Tested to Oxygen index – BS EN ISO 4589-2:1999


Up to 2 bar Pressure Resistance


100Kg pulling Force on the cables when sealed


10xd at 45º, with 1 bar pressure bending test

All the benefits of the FILOseal+ & FILOseal+HD with the addition of the following features:

Fire Resistant up to 4 hours BS EN1366-3 2009 & AS1530.4-2014


Tested to London Underground – LUL S1085


Tested to European rail applications – BS EN 45545-2:2013


Tested to French rail standard CIt NF F16-10


WIMES Compliant, 3.02 (April 2013) Section 6.4.3.2-b





Duct sealing systems type MD

Duct sealing systems MD5 are designed to provide an effective and straightforward solution for gas and watertight sealing of one or multiple cables/conduits in ducts or boreholes. MD5 protects against damage caused by gas and water leaks.

This duct sealing system is highly flexible and can be installed in vertical and horizontal duct or boreholes, and is suitable for boreholes drilled at an angle.

Duct sealing system MD2

Duct sealing system MD3

MD5 Duct Sealing System

About

The MD5 duct sealing system uses a specially formulated two-component expanding polyurethane resin. The polyurethane sealant is supplied in a two-component cartridge. The two liquid parts are formulated to be mixed at a 1:1 ratio, using the 2K cartridge and mixing nozzle provided.

After injecting the resin into the duct, the resin starts expanding by forming CO². During the expansion, the polyurethane resin penetrates all areas between the two foam flanges inside the duct. MD5 is suitable for all openings regardless of the shape of the duct or borehole and cable configuration.

After full curing, the Filoform two-component resin provides a 100% gas and watertight seal and offers excellent mechanical strength & rodent resistance. MD5 duct sealant is compatible with common cable jacket /sheath materials and PE drinking water conduits. The cured duct sealant is an inert solid mass that does not affect any of the materials inside of the duct.

The MD5 system has been designed to support and separate multiple cables in a duct / conduit using our uniquely designed duplex foam, whilst reducing excess expansion of resin out the front of the duct; This ensures a neater, less messy professional finish.  The opening of the duct does not need to be completely round.

Installation

One Box Solution
Everything needed to seal one duct end (except a caulking gun).

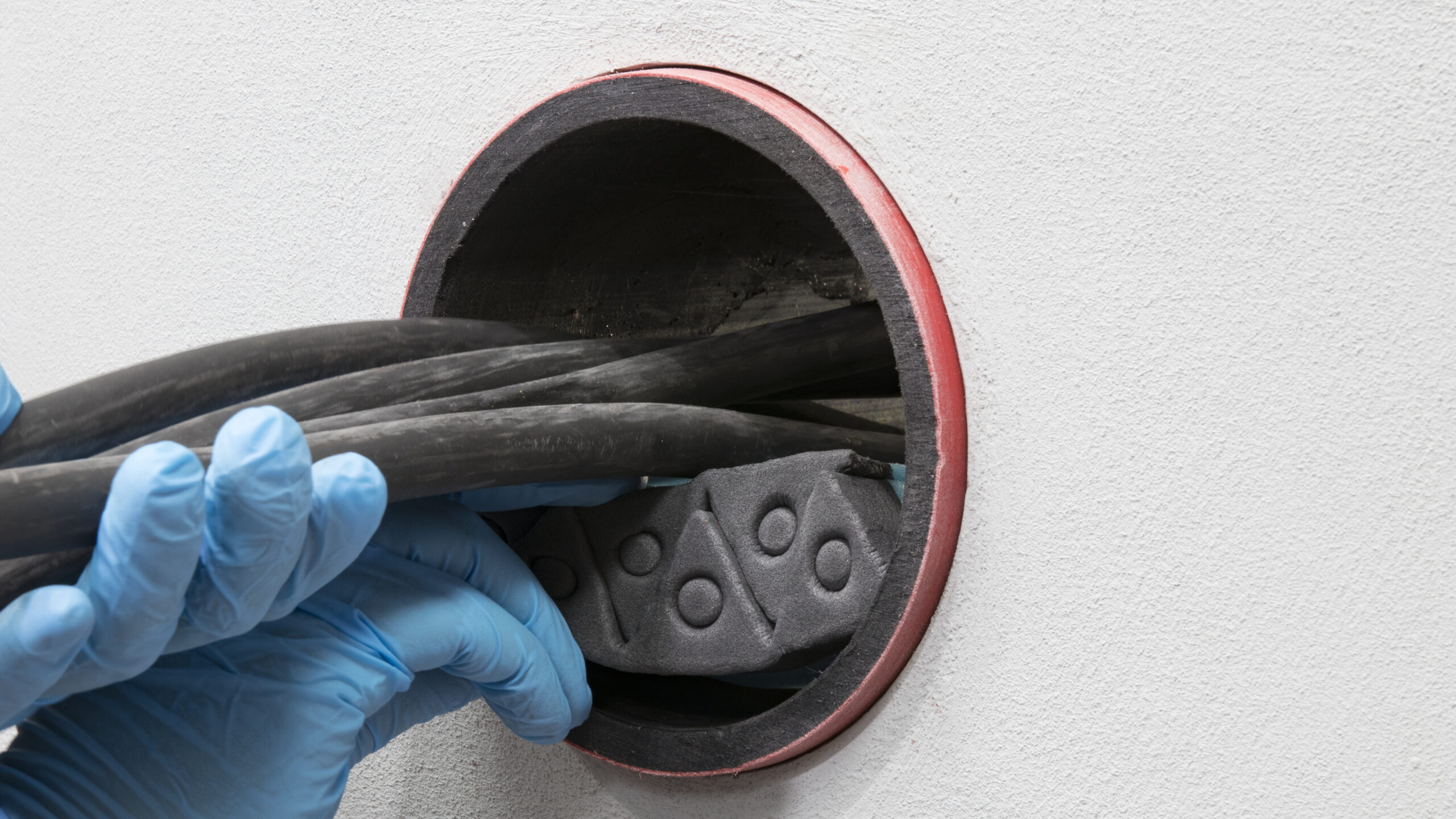

Cable Separation

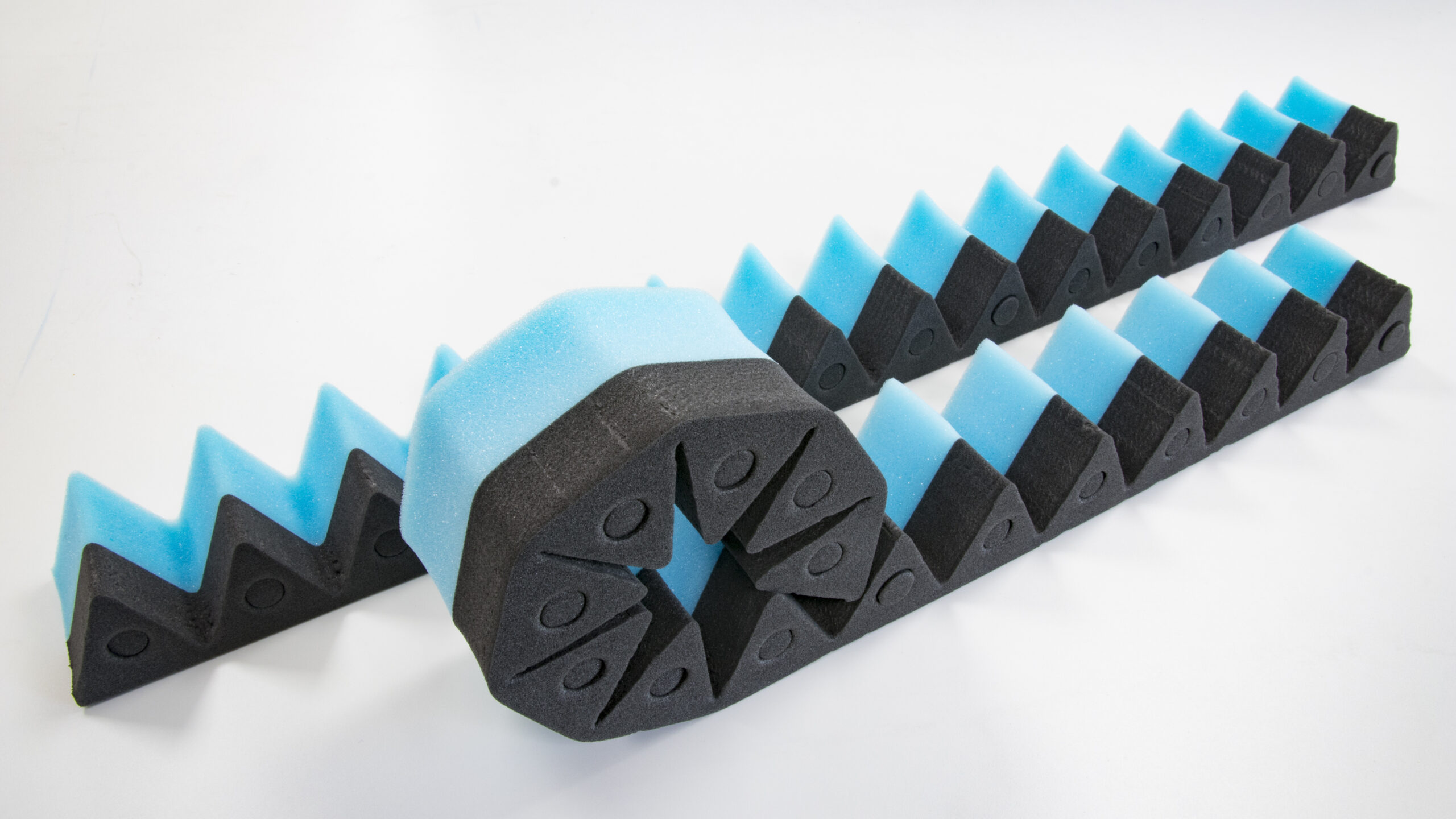

It is vital, to make sure the duplex foam is wrapped around each cable, to create separation from each other and the inside of the duct.

Running Water
The duct & cables must be as dry as possible with no running water and free from any dirt, oil, greese & debris. MD5’s resin can cope with small amounts of moisture in the duct or on the cables, but larger amounts of water will reduce the effectiveness. Please contact our technical department if you have any questions.

Product Range

MD5-160mm
Duct diameter min.-max. (mm): Ø 160 max.


MD5-110mm
Duct diameter min.-max. (mm): Ø 110 max. (set for 2 seals)

Specifications & Standards

Gas and watertight up to 1.5 bar / 21 PSI

After injecting, the polyurethane sealant will expand and cures/hardens with a high density and a closed cell structure

Easy and quick installation

One complete kit – Everything you need except for a standard caulking gun

Suitable for single & multiple cables

Compatible with a wide range of cable and conduit materials: PVC & PEsheathed cables, PILC cables, (HD)PE ducts, & PE drinking water conduits • High mechanical strength, resists ground movement, shocks and vibrations

Complies with DIN 18322 underground cable laying works – gas & watertight cable and conduit entries into buildings • Complies with 2011 NEC Articles 225.27, 230.8, 300.5(G), 300.7 (A) on Raceway Seals, and 501.15

MD2 Duct Sealing System

About

Filoform duct sealing systems have been developed to provide an effective gas and watertight seal of underground cable penetrations. When installing our duct sealing system MD2, you will protect valuables from damage which is caused by gas and water leaks.

Filoform duct seals type MD are based on a specially formulated two-component expanding polyurethane resin. The polyurethane sealant is packed in a transparent plastic bag with a screw ring. In this plastic bag, the two components are separated by a clamping profile. After removal of the clamping profile, the two components are simply mixed together for 30 seconds. The package is now ready for use and can be easily opened with the use of the screw nipple.

After pouring the resin in the duct, the resin starts expanding by forming CO². During the expansion the polyurethane filling material penetrates all areas inside the duct, thus sealing all openings regardless of the shape of the duct or borehole. After this the hardening process starts. The Filoform two component filler provides not only a 100% gas and watertight seal but also offers excellent mechanical strength.

The MD2 system is suitable in situations where more than one cable or pipe is in the duct. The opening of the duct does not need to be completely round.

Features

  • Gas- and watertight 1,0 bar
  • Expanding polyurethane sealant with a high density and a closed watertight cell structure
  • Can be used in any shaped or sized duct up to 200mm
  • Easy and quick installation
  • One complete kit for sealing of one duct
  • Seals all known materials: PVC & PE sheeted cables, PILC cables, (HD)PE pipes, PE drink water conduits
  • High mechanical strength, resists ground movement, shocks and vibrations
  • Also suitable for renovation works
  • No architectural measures necessary
  • Used by various utility companies as well as contractors
  • Over 25 years of operational experience

Product Range

MD2 50mm duct sealing set
Duct diameter min.-max. (mm):
Ø 50 max.
Maximum cable or pipe diameter in the duct (mm): Ø 40 max.


MD2 110mm duct sealing set
Duct diameter min.-max. (mm):
Ø 110 max.
Maximum cable or pipe diameter in the duct (mm): Ø 70 max.


MD2 125mm duct sealing set
Duct diameter min.-max. (mm):
Ø 125 max.
Maximum cable or pipe diameter in the duct (mm): Ø 90 max.


MD2 160mm duct sealing set
Duct diameter min.-max. (mm):
Ø 160 max.
Maximum cable or pipe diameter in the duct (mm): Ø 130 max.


MD2 200mm duct sealing set
Duct diameter min.-max. (mm):
Ø 200 max.
Maximum cable or pipe diameter in the duct (mm): Ø 160 max.


MD2 250mm duct sealing set
Duct diameter min.-max. (mm):
Ø 250 max.
Maximum cable or pipe diameter in the duct (mm): Ø 200 max.

Specifications & Standards

MD3 Duct Sealing System

About

Filoform duct sealing systems have been developed to provide an effective gas and watertight seal of underground cable penetrations. When installing our duct sealing system MD3, you will protect valuables from damage which is caused by gas and water leaks.

Filoform duct seals type MD are based on a specially formulated two-component expanding polyurethane resin. The polyurethane sealant is packed in a transparent plastic bag with a screw ring. In this plastic bag, the two components are separated by a clamping profile. After removal of the clamping profile, the two components are simply mixed together for 30 seconds. The package is now ready for use and can be easily opened with the use of the screw nipple.

After pouring the resin in the duct, the resin starts expanding by forming CO². During the expansion the polyurethane filling material penetrates all areas inside the duct, thus sealing all openings regardless of the shape of the duct or borehole. After this the hardening process starts. The Filoform two component filler provides not only a 100% gas and watertight seal but also offers excellent mechanical strength.

The MD3 system is suitable in situations where more than one cable or pipe is in the duct. The opening of the duct does not need to be completely round.

Features

  • Gas- and watertight 1,0 bar
  • After mixing the polyurethane sealant it will expand and cures/hardens with a high density and a closed cell structure
  • Can be used in any shaped or sized duct up to 200mm
  • Easy and quick installation
  • One complete kit for sealing of one duct
  • Seals all known materials: PVC & PE sheeted cables, PILC cables, (HD)PE pipes, PE drink water conduits
  • High mechanical strength, resists ground movement, shocks and vibrations
  • Also suitable for renovation works
  • No architectural measures necessary
  • Used by various utility companies as well as contractors
  • Over 25 years of operational experience

Product Range

MD3 25mm duct sealing set for protection sleeves
Duct diameter min.-max. (mm): Ø 25 max.
Maximum cable or pipe diameter in the duct (mm): Ø 8 max.


MD3 50mm duct sealing set for protection sleeves
Duct diameter min.-max. (mm): Ø 50 max.
Maximum cable or pipe diameter in the duct (mm): Ø 20 max.


MD3 75mm duct sealing set for protection sleeves
Duct diameter min.-max. (mm): Ø 75 max.
Maximum cable or pipe diameter in the duct (mm): Ø 40 max.


MD3 110mm duct sealing set for protection sleeves
Duct diameter min.-max. (mm): Ø 110 max.
Maximum cable or pipe diameter in the duct (mm): Ø 80 max.


MD3 160mm duct sealing set for protection sleeves
Duct diameter min.-max. (mm): Ø 160 max.
Maximum cable or pipe diameter in the duct (mm): Ø 130 max.


MD3 200mm duct sealing set for protection sleeves
Duct diameter min.-max. (mm): Ø 200 max.
Maximum cable or pipe diameter in the duct (mm): Ø 160 max.


MD3 250mm duct sealing set for protection sleeves
Duct diameter min.-max. (mm): Ø 250 max.
Maximum cable or pipe diameter in the duct (mm): Ø 220 max.




Specifications & Standards

Gas and watertight up to 1.5 bar / 21 PSI

After injecting, the polyurethane sealant will expand and cures/hardens with a high density and a closed cell structure

Easy and quick installation

One complete kit – Everything you need except for a standard caulking gun

Suitable for single & multiple cables

Compatible with a wide range of cable and conduit materials: PVC & PEsheathed cables, PILC cables, (HD)PE ducts, & PE drinking water conduits • High mechanical strength, resists ground movement, shocks and vibrations

Complies with DIN 18322 underground cable laying works – gas & watertight cable and conduit entries into buildings • Complies with 2011 NEC Articles 225.27, 230.8, 300.5(G), 300.7 (A) on Raceway Seals, and 501.15

MD4 Duct Sealing System

About

Filoform duct sealing systems have been developed to provide an effective gas and watertight seal of underground cable penetrations. When installing our duct sealing system MDIV, you will protect valuables from damage which is caused by gas and water leaks.

Filoform duct seals type MD are based on a specially formulated two-component expanding polyurethane resin. The polyurethane sealant is packed in a transparent plastic bag with a screw ring. In this plastic bag, the two components are separated by a clamping profile. After removal of the clamping profile, the two components are simply mixed together for 30 seconds. The package is now ready for use and can be easily opened with the use of the screw nipple.

After pouring the resin in the duct, the resin starts expanding by forming CO². During the expansion the polyurethane filling material penetrates all areas inside the duct, thus sealing all openings regardless of the shape of the duct or borehole. After this the hardening process starts. The Filoform two component filler provides not only a 100% gas and watertight seal but also offers excellent mechanical strength.

Features

  • Gas- and watertight 1,0 bar
  • Can be used in any shaped or sized duct up to 200mm
  • Easy and quick installation
  • One complete kit for sealing of one duct
  • Seals all known materials: PVC & PE sheeted cables, PILC cables, (HD)PE pipes, PE drink water conduits
  • High mechanical strength, resists ground movement, shocks and vibrations
  • Also suitable for renovation works
  • No architectural measures necessary
  • Used by various utility companies as well as contractors
  • Over 25 years of operational experience

Product Range

MD1 25mm duct sealing set
Duct diameter min.-max. (mm): Ø 16-32
Maximum cable or pipe diameter in the duct (mm): Ø 12,5 max.


MD1 50mm duct sealing set
Duct diameter min.-max. (mm): Ø 32-60
Maximum cable or pipe diameter in the duct (mm): Ø 25 max.




Specifications & Standards

Sealants

Filoform supplies a comprehensive range of quality solutions, applications and products to meet the general, specialist and bespoke requirements of cable, fibre optic and utility networks. Our sealing solutions are characterized by their simplicity, universal application and reliability.

MD+ Sealant

About

The MD+ sealant is easily applied from a skeleton gun. The high quality, one component, flexible sealant “MD+” is based on a silicon compound that cures with air (Humidity).

After application and full curing the thixotropic MD+ forms a plastic elastomer mass with special qualities effectively sealing and bonding, while providing a high level of durability.

Larger duct openings can be sealed in combination with our specially designed tri-flexible foam. This is available as a complete set FiloSeal +

Features

  • Flexible, one component, adhesive and sealing compound in a cartridge – (310ml)
  • High levels of Gas and Water tightness
  • Removable / Re-enterable
  • Excellent adhesion, applicable to all common building materials
  • Shows Fire resistance properties
  • Resistant against Water, Alkaline, Chemical agents
  • Resistant to Hydrogen Sulphide / Methane and many other Gases (NedLab)
  • Non corrosive
  • Solvent free
  • Shock absorbing
  • Non toxic, neutral and almost odourless
  • Suitable for any shaped duct / bore hole / opening
  • Quick and easy installation
  • Seals all know materials, PVC & PE sheathed cables, PILC, (HD) PE pipes
  • Suitable for renovations, can be installed retrospectively

Product Range

MD+ Sealant 310ml

Technical specifications

Density1,2 gr/cm³
Flow< 2mmISO 7390
Colourred-brown
Skin over time± 15 minutes23°C/55%RH
Curing3 mm/24h
Hardness30 shore ADIN 53505
Elongation100%DIN 53504
Tensile strength0,8 N/mm²DIN 53504
Operating temperature+5°C to +40°C
Temperature resistance-40°C to +120°C

Fire Resistant Duct Seal

Filoform FiloSeal+HD FIRE is a new highly certified fire, gas and water duct sealing system for both ducts and cable transit frame systems. FiloSeal+HD FIRE provides a strong support system using the fire resistant hexagonal blocks made of specially formulated material called ‘Formite’ which builds up like a honeycomb structure.

FiloSeal+HD FIRE

About

FiloSeal+HD FIRE provides a strong support system using the fire resistant hexagonal blocks made of our specially formulated material called ‘Formite’ which builds up like a honeycomb structure. FiloSeal+HD FIRE is suitable for sealing  empty or any cable configuration or pipes contained in one duct and also allows easy re-entry of the seal to add or remove cables or pipes as required

The Filoform duct sealing system FiloSeal+HD FIRE uses our fire resistant MD+ sealant which is easily applied from a skeleton gun. The high quality, one component, flexible sealant “MD+” is based on a silicon compound that cures with air (Humidity).

After application and full curing the thixotropic MD+ forms a plastic elastomer mass with special qualities effectively sealing and bonding, while providing a high level of durability.

FiloSeal+HD FIRE is very easy to apply regardless of the type of cable scenario in the cable ducts as it uses strong, but flexible hexagonal blocks to support the cable and provide a strong backing for the seal

The unique design of the hexagonal blcoks makes positioning and separation of the cables very simple while also providing a strong backing for the MD+ to be applied on.

Features

  • Fire resistant (BS EN1366-3 2009)
  • Flexible, one component fire resistant adhesive and sealing compound in a cartridge – (310ml)
  • High levels of Gas and Water tightness
  • Excellent adhesion, applicable to all common building materials
  • Resistant against Water, Alkaline, Chemical agents
  • Resistant to termites (Mastotermes Darwiniensis) Northern Australian termites
  • Resistant to Rats
  • Resistant to Hydrogen Sulphide / Methane and many other Gases (NedLab)
  • Non corrosive
  • Solvent free
  • Shock absorbing
  • Non toxic, neutral and almost odourless
  • Also suitable for limiting the EX-zones during transitions (observe chemical resistance)
  • Suitable for any shaped duct / bore hole / opening
  • Quick and easy installation
  • A complete kit
  • Seals all know materials, PVC & PE sheathed cables, PILC, (HD) PE pipes
  • Suitable for renovations, can be installed retrospectively
  • Over 25 years of operational experience

Product Range

FiloSeal+HD FIRE 110mm
Duct diameter min.-max. (mm): Ø 110 max.


FiloSeal+HD FIRE 160mm
Duct diameter min.-max. (mm): Ø 160 max..

Standards & Tests

Complies with ATEX regulations


WIMES Compliant, 3.02(April2013) Section 6.4.3.2-d.




Cabinet Base Sealant

The Filoform Cabinet Base Sealant is designed for use in LV distribution cabinets, public lighting cabinets, cabinets for traffic control, and outdoor transformer station installations.

The casting resin prevents ingress of pests and weed growth or the penetration of the roots of plants. In addition, a solid floor improves the climate within the stations. This ensures less chance of interference and extends the life of the components.

Cabinet Base Sealant Black

About

The Filoform Cabinet Base Sealant is designed for use in LV distribution cabinets, public lighting cabinets, cabinets for traffic control, and outdoor transformer station installations.

The casting resin prevents ingress of pests and weed growth or the penetration of the roots of plants. In addition, a solid floor improves the climate within the stations. This ensures less chance of interference and extends the life of the components.

Features

  • Packaged in set with 2 x 2.5 L.
  • Resin contains no MDI.
  • Prevents ingress of moisture, pests and the instrusion of weeds, roots and plants.
  • Improves the climate inside the street cabinets and transformer stations.
  • Decrease of the sensitivity to interference of the equipment.
  • Extension of the life of the components.
  • Quick and easy to apply.
  • Good flow properties.
  • Self levelling characteristics.
  • Good adhesion.
  • Smooth and non-tacky surface.
  • Easy to remove for local input of additional cables and pipes; after wards easy to finish.

Product Range

Cabinet Base Sealant 2 x 2,5Ltr. MV
Colour: black
Content: 5000ml




Specifications

PropertiesUnitValue
Potlife (process time) 5°Cminutes90
Potlife (process time) 23°Cminutes75
Potlife (process time) 35°Cminutes60
Viscosity (mixture) 25°CPa.s1
Gel-timeminutes120
Densityg / cm³1.3
HardnessShore D18
Water absorption (30d/23°C)%< 1.0
Weight loss 28d/120°C%0.8

More Information

Foam Plate
FR

About

The Filoform Foam Plate is a closed cell, cross-linked polyethylene foam. The product can be easilty shaped with a knife to fit into a floor or duct opening. The foam will prevent humidity to acces stations. The foam can be fixed to walls and cables with use of the Filoform Hyperflash tape.

  • Creates a airtight seal to prevent humidity problems
  • Easy to cut
  • Flame retardant

Features

  • Prevents ingress of moisture and condensation to reach equipment.
  • Improves the climate inside the street cabinets and transformer stations.
  • Decrease of the sensitivity to interference of the equipment.
  • Extension of the life of the components.
  • Quick and easy to apply.
  • Easy to remove for local input of additional cables and pipes.

Product Range

Foam Plate flame retardant
Dimensions (mm): 980x425x30


FiloSeal+HD – 180 mm
Duct diameter min.-max. (mm): Ø 180 max.


FiloSeal+HD – 200 mm
Duct diameter min.-max. (mm): Ø 200 max.


FiloSeal+HD – 225 mm
Duct diameter min.-max. (mm): Ø 225 max.


FiloSeal+HD – 250 mm
Duct diameter min.-max. (mm): Ø 225 max.




Nitto tape Hyperflash 6951

About

  • Exellent for applications in building and construction
  • Formable sealing tape for air and watertight seals from difficult angles
  • Stretch tape for a perfect seal around pipes and ducts

Features

  • Material is extremely stretchy in all directions and deformable up to 580%
  • Tape can be applied without the formation of seams and folds
  • A permanent suture is secured by substantially high bond strength
  • Adhesive provides an exceptional bond to wood, plastics, metal, glass and stone

Product Range

Hyperflash 6951A, 75mm x 5m
Dimensions: 75mm x 5m x 1,3mm




Specifications

MaterialEPDM rubber
adhesive typeButyl based
Total thickness1,32mm
Tensile strength9,8 N/10mm
Elongation at break580%
Adhesion on multiplex21,2 N/10mm
Storage humidity40-75%

More Information

BEFORE

AFTER

Strategising Your Operations in Engineering begins with First Contact.

Advanced Process Engineering takes the time to analyse and understand about the issues of your project before recommending a solution that fits. We provide professional advice during the initial discussion to ensure successful implementation. Or Call us for a Chat at +65 9230 5700.

    Advanced Process Engineering
    Advanced Process Engineering (APE) is a critical technologies solution provider of instruments, subsystems, and process control that measure, control, monitor, analyse critical parameters of advanced manufacturing processes to improve process performance and productivity.
    • Contact Us
    • Delivery Information
    APEngineering.sg ©2021- 2022 | Advanced Process Engineering Pte Ltd. All Rights Reserved.
    Previous Next
    Close
    Test Caption
    Test Description goes like this
    Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.
    • Image
    • SKU
    • Rating
    • Price
    • Stock
    • Availability
    • Add to cart
    • Description
    • Content
    • Weight
    • Dimensions
    • Additional information
    • Attributes
    • Custom attributes
    • Custom fields
    Click outside to hide the compare bar
    Compare
    X
