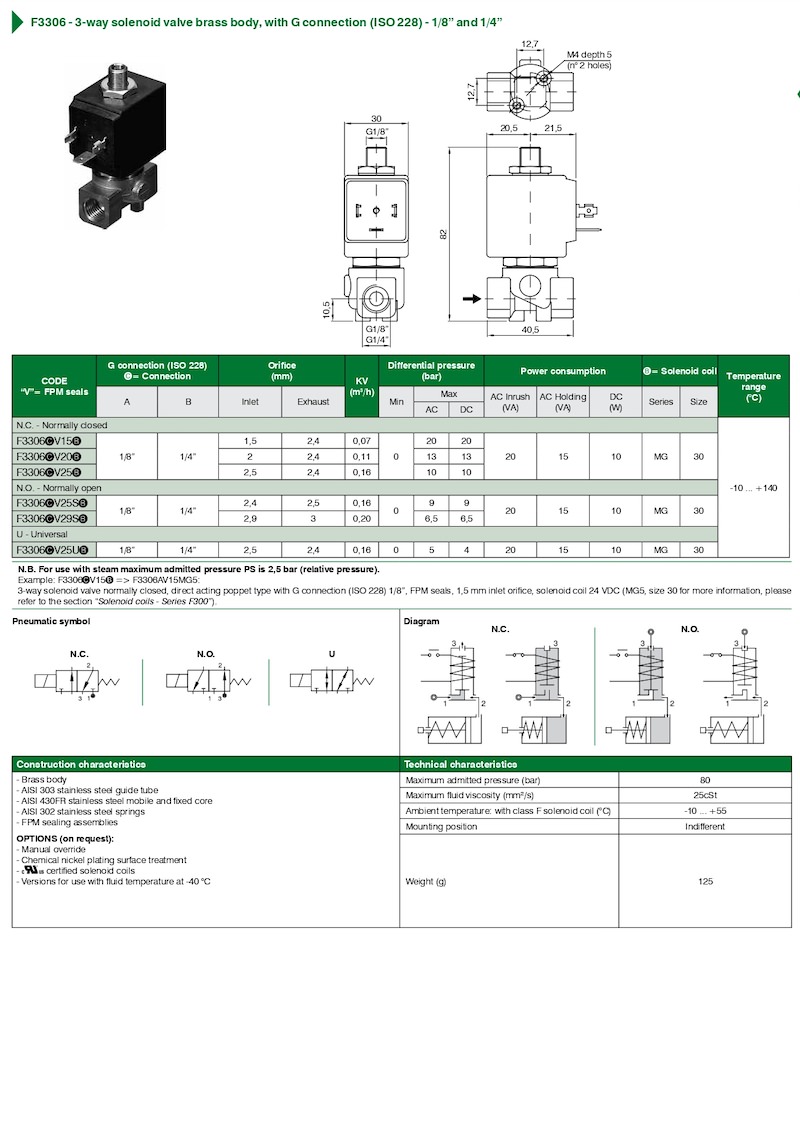

F3306 – 3-way solenoid valve brass body, with G connection (ISO 228) – 1/8” and 1/4”

Construction characteristics:
– Brass body
– AISI 303 stainless steel guide tube
– AISI 430FR stainless steel mobile and fixed core
– AISI 302 stainless steel springs
– FPM sealing assemblies
OPTIONS (on request):
– Manual override
– Chemical nickel plating surface treatment
– certified solenoid coils cRUus
– Versions for use with fluid temperature at -40°C
