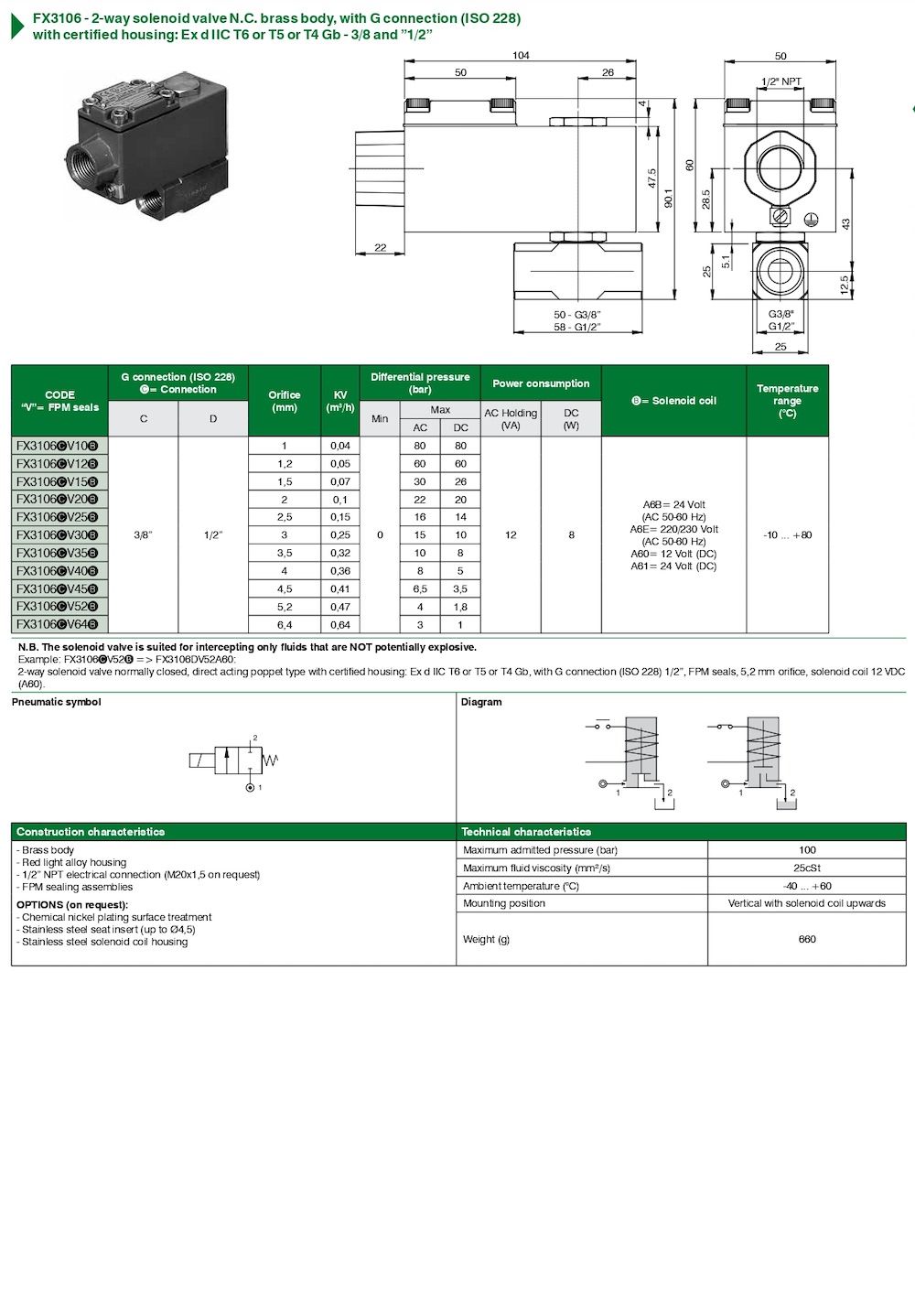

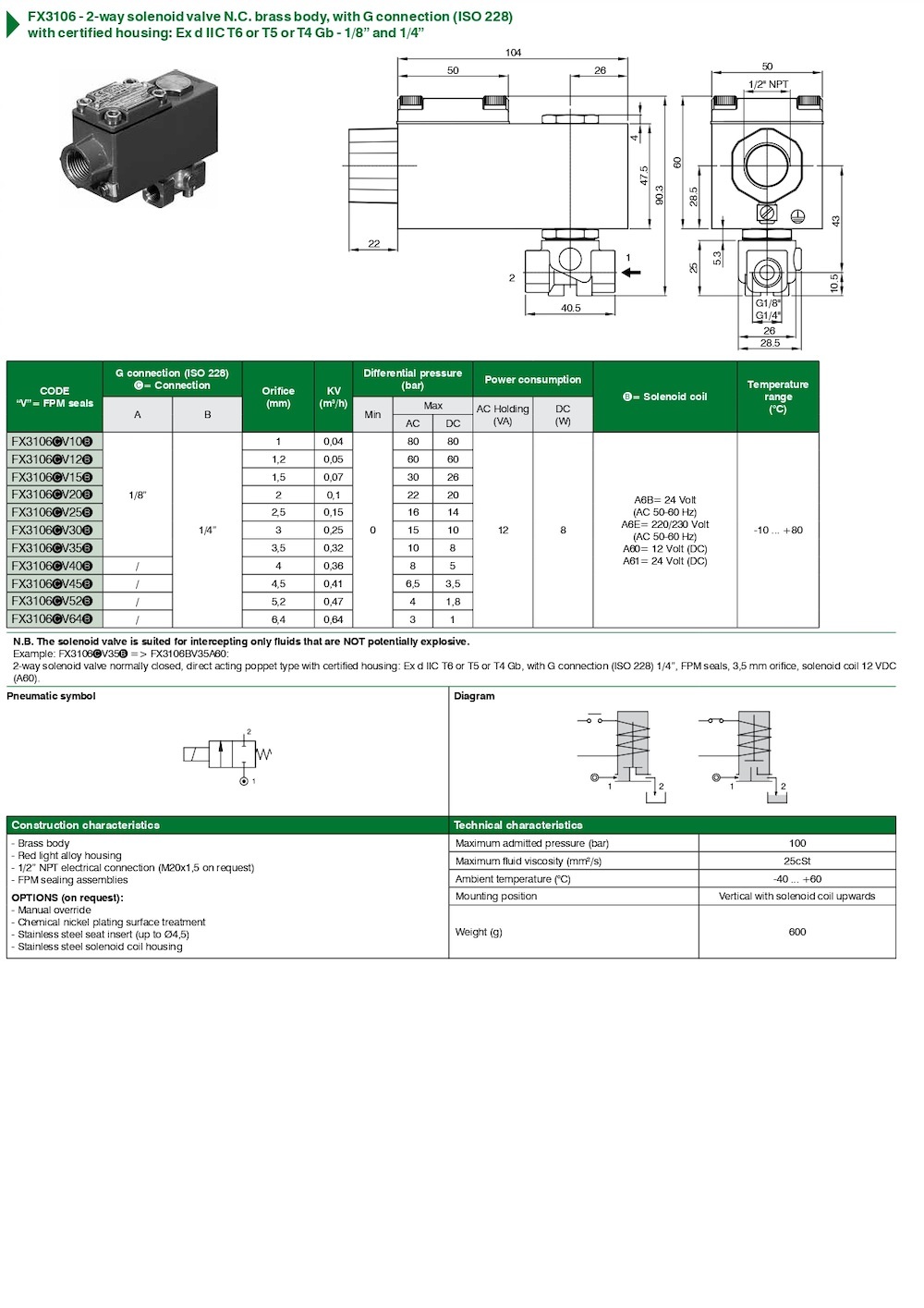

FX3106 – 2-way solenoid valve N.C. brass body, with G connection (ISO 228) with certified housing: Ex d IIC T6 or T5 or T4 Gb – 1/8”-1/4”-3/8″-1/2″

Construction characteristics:
– Brass body
– Red light alloy housing
– 1/2” NPT electrical connection (M20x1,5 on request)
– FPM sealing assemblies

OPTIONS (on request):
– Manual override
– Chemical nickel plating surface treatment
– Stainless steel seat insert (up to Ø4.5)
– Stainless steel solenoid coil housing
