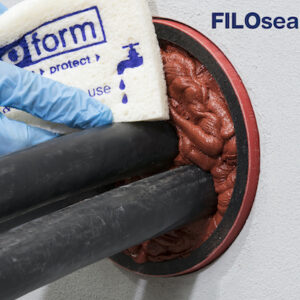

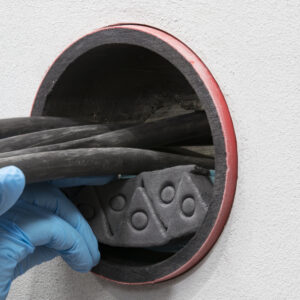

Re-enterable Duct Seals: FiloSeal+HD FIRE

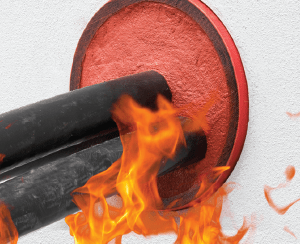

Duct sealing system FiloSeal+HD FIRE is our new highly certified fire, gas and water sealing system for both ducts and transit frames
- Up to 4 hours fire resistance in transit frames (single side)
- Up to 4 hours fire resistance in ducts
- Tested to BS EN1366-3 2009
- Upto 2 bar Pressure Resistance
- 100Kg pulling Force on the cables when sealed
- 10xd at 45º, with 1 bar pressure bending test
Description
|
FiloForm FiloSeal HD+ Fire from Filoform on Vimeo. |
Duct sealing system FiloSeal+HD FIRE is our new highly certified fire, gas and water sealing system for both ducts and transit frames
|

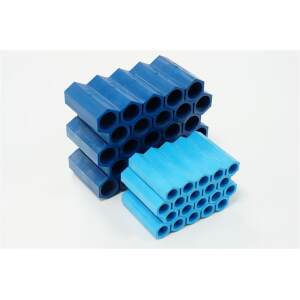

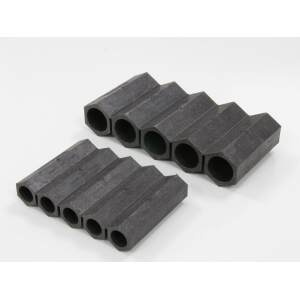

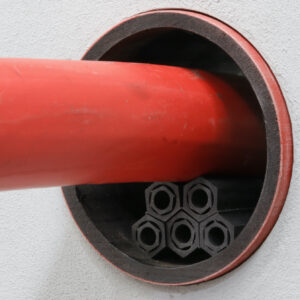

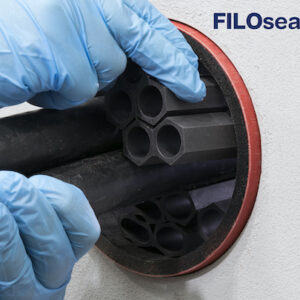

Formite hexagonal blocks
|
Specifications
|
Products
| Sku | Product Name | Maximum cable or pipe diameter in the duct (mm) | Contents | Box Dims | Weight |
|---|---|---|---|---|---|
| 280070 | Filoseal+HD FIRE | 75>110mm Duct Sealing System | 2 bar, water, gas & rodent proof plus BS EN1366-3:2009 Fire certified – up to 110mm Kit contains backing and MD+ sealant to fill an empty duct of the quoted size. |
26 x 19 x 10cm |
1.16kg |
| 280080 | Filoseal+HD FIRE | 125>160mm Duct Sealing System | 2 bar, water, gas & rodent proof plus BS EN1366-3:2009 Fire certified – up to 160mm Kit contains backing and MD+ sealant to fill an empty duct of the quoted size. |
32 x 27 x 9cm |
2.04kg |
| 280090 | Filoseal+HD FIRE | 180mm Duct Sealing System | 2 bar, water, gas & rodent proof plus BS EN1366-3:2009 Fire certified – up to 180mm Kit contains backing and MD+ sealant to fill an empty duct of the quoted size. |
33 x 29 x 22cm |
3.56kg |
| 280100 | Filoseal+HD FIRE | 200mm Duct Sealing System | 2 bar, water, gas & rodent proof plus BS EN1366-3:2009 Fire certified – up to 200mm Kit contains backing and MD+ sealant to fill an empty duct of the quoted size. |
33 x 29 x 22cm |
3.56kg |
| 280110 | Filoseal+HD FIRE | 225mm Duct Sealing System | 2 bar, water, gas & rodent proof plus BS EN1366-3:2009 Fire certified – up to 225mm Kit contains backing and MD+ sealant to fill an empty duct of the quoted size. |
33 x 28 x 22cm |
4.44kg |
| 280120 | Filoseal+HD FIRE | 250mm Duct Sealing System | 2 bar, water, gas & rodent proof plus BS EN1366-3:2009 Fire certified – up to 250mm Kit contains backing and MD+ sealant to fill an empty duct of the quoted size. |
33 x 28 x 30cm |
5.60kg |
