NDIR GAS ANALYZER
This gas analyzer (ZRE) is capable of measuring the concentration of NO,SO2,CO2,CO,CH4 and O2 components in sample gas. NO,SO2,CO2,CO and CH4 are measured
by non-dispersion infrared method (NDIR), while O2 is measured by fuel cell, or zirconia method. Up to 5 com- ponents including O2 can be measured simultaneously. This analyzer is designed with smaller physical dimen- sions. It is well suited for compact analyzing system designs.
In addition maintenance is simplified through adoption of the single-beam system.
Optimum use as an analyzer unit of measurement system for combustion exhaust gas from refuse incinerator and boiler, or gas from various industrial furnaces.
ZRE_Datasheet | ZRE_Catalog | ZRE_Manual
Description

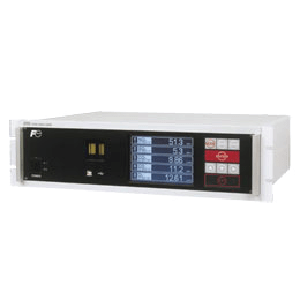

- Small and lightThe size is small 133×483×418mm (H×W×D) and light (8kg).
But it is capable max. 5 component measurement in one analyzer. - Easy maintenanceBecause of single-beam system the measurement unit is simple with no need for optical adjustment. There- fore, maintenance is easy.
- Easy operationOperation can be carried out smoothly in an interactiveway through a large-size LCD.
- Abundant functionsVarious optional functions are available such as auto calibration control, high and low concentration alarm, remote range switch, and range identification signal, etc.
